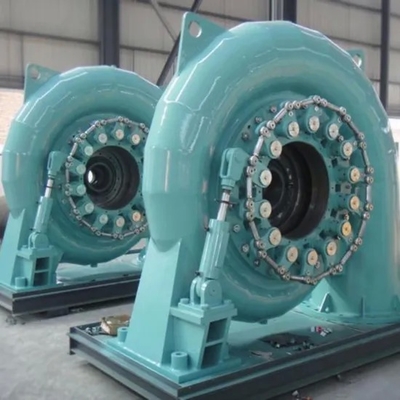

Francis Hydro Turbine Generator 50kw-20MW 400V-6300V 90-95% Efficiency
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
|
Detail Information |
|||
| Model NO.: | ZDJJP-012 | Output Type: | AC Three Phase |
|---|---|---|---|
| Bearing Support: | Umbrella Type | Bearing Number: | 1 |
| Efficiency: | 90%-95% | Voltage: | 400V-6300V |
| Frequency: | 20Hz, 60Hz | Turbine Type: | Francis, Turgo, Kaplan, Pelton |
| Power Design: | 50kw-20MW | Water Head: | 20-300m |
| Lifespan: | 30 Years | Production Capacity: | 200 Sets Per Year |
| Runner Blade Angle: | 45° | Guide Vane Angle: | 35° |
| Blade Rotation Angle: | 30° | ||
| Highlight: | Francis Hydro Turbine Generator 50kw,Francis Hydro Turbine 400V-6300V,Francis Hydro Turbine 90-95% efficiency |
||
Product Description
High Low Head Mini Micro Pelton Axial Impulse Hydropower Water Turbine Generator
Turgo Turbine
The inclined-jet turbine is designed for power stations with high head and low flow conditions. Water flows from the reservoir through the diversion pipe and nozzle at high speed onto the runner blades, driving rotation. After passing through the runner, water falls into the tailwater tank and drains into the downstream channel.
This turbine is ideal for small hydropower stations with water heads of 20-200m, available in both vertical and horizontal shaft configurations with manual, automatic, or electric speed regulation options.
Key Features
- Runner blades angled at 45° to the main shaft axis
- Stainless steel construction for durability
- Inclined volute and seat ring design for improved efficiency
- Compact footprint reduces installation space requirements
- Guide vane transmission mechanism with ball pin hinges
Advantages of Turgo Turbine
- High efficiency: Converts water kinetic energy to mechanical energy with excellent return on investment
- Low cost: Simple equipment design reduces manufacturing and maintenance expenses
- Adaptable: Flexible installation options meet diverse regional and power requirements
Company Profile
| Production Capabilities | Details |
|---|---|
| Production Lines | 6 |
| Production Machines | 40 |
| Quality Control | |
| Raw Material Traceability | Yes |
| Product Inspection | 100% inspection |
| QA/QC Inspectors | 4 |
| Trade Background | |
| Main Markets | Domestic (88%), Southeast Asia (9%), South Asia (2%) |
| Main Client Types | Retailers, Engineers, Manufacturers |
| R&D Capabilities | |
| Customization Options | Sample processing, graphic processing, on-demand customization |
| R&D Engineers | 6 (5 graduate, 1 junior college) |
| New Products (Last Year) | 15 |
