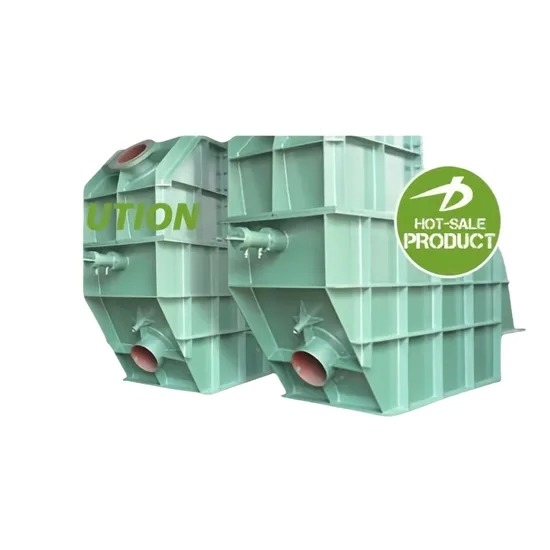

50kW-20MW Francis Hydro Turbine Generator with 90% Efficiency
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
|
Detail Information |
|||
| Model NO.: | ZDJJP583 | Output Type: | DC |
|---|---|---|---|
| Type: | Horizontal Hydro Generator | Bearing Support: | Hanging Type |
| Speed: | Low Speed | Bearing Number: | 2 |
| Runner Material: | Stainless Steel | Efficiency: | Up To 90% |
| Insulation Class: | F/F | Capacity: | 50kw-20MW |
| Generator Type: | Brushless | Voltage: | 400V-6300V |
| Turbine: | Francis, Pelton, Turgo, Kaplan | Specification: | 300CMx200cmx150cm |
| Water Head: | 10m - 700m | Power Range: | 50kW - 20MW |
| Frequency: | 50Hz / 60Hz | Generator Voltage: | 400V, 800V, 6300V, 10500V |
| Layout Mode: | Horizontal Or Vertical | Material: | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation: | Brushless Or Static Excitation System | Lifespan: | 50 Years |
| Runner Diameter: | 0.35m - 4m | Generator Insulation: | F/F |
| Highlight: | 50kW Francis hydro turbine generator,20MW hydro turbine with warranty,Francis turbine 90% efficiency |
||
Product Description
100kW micro/small/mini power generator turbine Kaplan pelton turgo Francis water turbine
| Parameter | Value |
|---|---|
| Water head | 10m - 700m |
| Power range | 50kW - 20MW |
| Frequency | 50Hz / 60Hz |
| Generator voltage | 400V, 800V, 6300V, 10500V |
| Layout mode | Horizontal or vertical |
| Material | Stainless steel ZG0Cr13Ni4Mo |
| Excitation | Brushless or static excitation system |
| Lifespan | 50 years |
| Runner diameter | 0.35m - 4m |
| Generator insulation | F/F |
The Francis turbine features a compact structure and high efficiency, capable of adapting to a wide range of water heads. It is one of the widely used turbine types in various countries around the world. When water flows through the runner of this turbine, it enters radially and exits axially, so it is also known as a radial-axial turbine.
It is suitable for a water head range from 20 meters to 700 meters. With a simple structure, stable operation, and high efficiency, it is generally used within the medium head range (50 meters to 400 meters). The output of a single unit ranges from tens of kilowatts to hundreds of thousands of kilowatts. Currently, the maximum output of this type of turbine has exceeded 700,000 kilowatts, making it one of the most widely used turbines.
- Over 20 years of customization experience in hydraulic turbines
- Exceptional safety and reliability with minimal system failure points
- High efficiency and energy conservation, reducing operational costs
- Excellent cooling performance for stable operation in various conditions
- Broad applicability for mixed-flow, axial-flow, and other turbine types
- Adaptable to different operating conditions and client requirements
- Proven performance in hydropower and pumped storage applications
- Exploration and design of hydropower plants
- Design and manufacturing of turbine generator sets
- EPC for electromechanical equipment (including water conveyance systems)
- Pre-sales services and technical consultancy
- Training services and installation guidance
- Maintenance services and operational support
