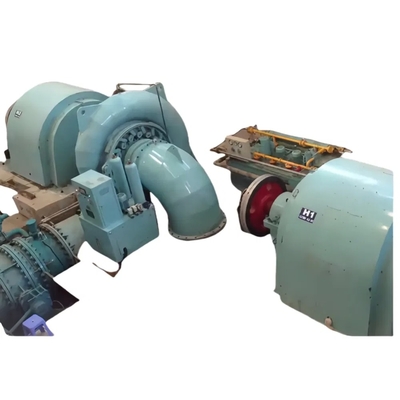

100kw Francis Hydro Turbine Generator 400V-6300V Brushless
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
|
Detail Information |
|||
| Model NO.: | ZDJJP580 | Output Type: | DC |
|---|---|---|---|
| Bearing Support: | Hanging Type | Speed: | Low Speed |
| Bearing Number: | 2 | Runner Material: | Stainless Steel |
| Efficiency: | Up To 90% | Insulation Class: | F/F |
| Capacity: | 50kw-20MW | Generator Type: | Brushless |
| Voltage: | 400V-6300V | Water Head: | 10m - 700m |
| Frequency: | 50Hz / 60Hz | Runner Diameter: | 0.35m - 4m |
| Lifespan: | 50 Years | ||
| Highlight: | 100kw Francis hydro turbine generator,brushless hydro turbine 400V-6300V,Francis turbine generator with warranty |
||
Product Description
100kw micro/small/mini power generator turbine Kaplan pelton turgo Francis water turbine
| Water head | 10m - 700m |
|---|---|
| Power range | 50kW - 20MW |
| Frequency | 50Hz / 60Hz |
| Generator voltage | 400V, 800V, 6300V, 10500V |
| Layout mode | Horizontal or vertical |
| Material | Stainless steel ZG0Cr13Ni4Mo |
| Excitation | Brushless or static excitation system |
| Lifespan | 50 years |
| Runner diameter | 0.35m - 4m |
| Generator insulation | F/F |

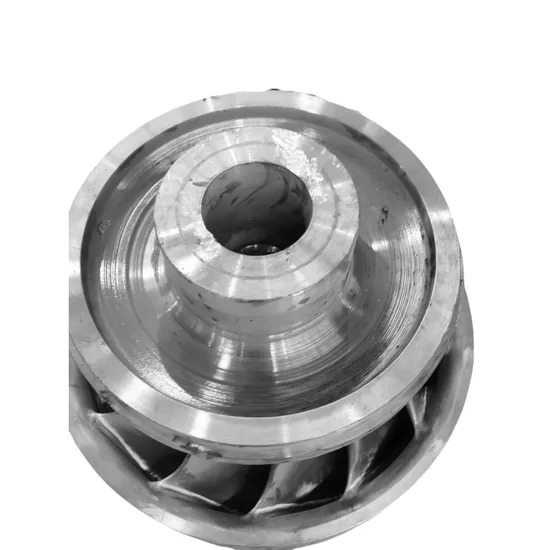

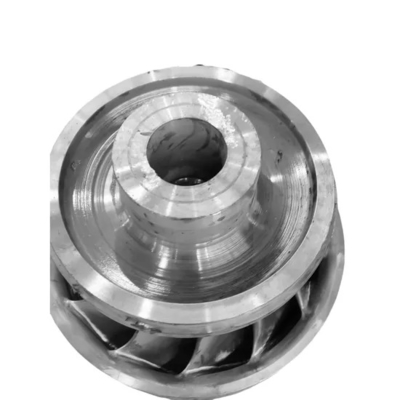

The Francis turbine features a compact structure and high efficiency, capable of adapting to a wide range of water heads. It is one of the widely used turbine types in various countries around the world. When water flows through the runner of this turbine, it enters radially and exits axially, so it is also known as a radial-axial turbine.
It is suitable for a water head range from 20 meters to 700 meters. With a simple structure, stable operation, and high efficiency, it is generally used within the medium head range (50 meters to 400 meters). The output of a single unit ranges from tens of kilowatts to hundreds of thousands of kilowatts. Currently, the maximum output of this type of turbine has exceeded 700,000 kilowatts, making it one of the most widely used turbines.
- 20+ years of specialized experience in hydraulic turbine manufacturing
- Customized solutions tailored to specific project requirements
- High safety standards and reliable performance
- Excellent cooling performance for stable operation
- Energy-efficient design reducing operational costs
- Minimal system failure points for enhanced reliability
- Versatile applications across various hydropower scenarios
- Exploration and design of hydropower plants
- Design and manufacturing of turbine generator sets
- EPC for electromechanical equipment (including water conveyance systems)
- Pre-sales services for hydropower plants
- Training services for hydropower plants
- Technical consultancy for operations
- Installation and commissioning guidance
- Maintenance services for hydropower plants
