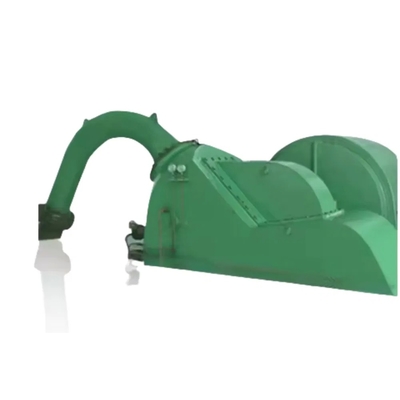

Francis Hydro Turbine 50kW-20MW Horizontal Generator Stainless Steel
Product Details:
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
|
Detail Information |
|||
| Model NO.: | ZDJJP138 | Output Type: | DC |
|---|---|---|---|
| Bearing Support: | Hanging Type | Speed: | Low Speed |
| Bearing Number: | 2 | Runner Material: | Stainless Steel |
| Efficiency: | Up To 90% | Insulation Class: | F/F |
| Capacity: | 50kw-20MW | Generator Type: | Brushless |
| Voltage: | 400V-6300V | Turbine Type: | Francis, Pelton, Turgo, Kaplan |
| Dimensions: | 300CMx200cmx150cm | Water Head: | 10m - 700m |
| Frequency: | 50Hz / 60Hz | ||
| Highlight: | Francis Hydro Turbine stainless steel,Horizontal Francis Hydro Turbine generator,Francis Hydro Turbine 50kW-20MW |
||
Product Description
Micro/small/mini power generator turbine Kaplan Pelton Turgo Francis water turbine
| Water head | 10m - 700m |
| Power range | 50kW - 20MW |
| Frequency | 50Hz / 60Hz |
| Generator voltage | 400V, 800V, 6300V, 10500V |
| Layout mode | Horizontal or vertical |
| Material | Stainless steel ZG0Cr13Ni4Mo |
| Excitation | Brushless or static excitation system |
| Lifespan | 50 years |
| Runner diameter | 0.35m - 4m |
| Generator insulation | F/F |
The Francis turbine features a compact structure and high efficiency, capable of adapting to a wide range of water heads. It is one of the widely used turbine types in various countries around the world. When water flows through the runner of this turbine, it enters radially and exits axially, so it is also known as a radial-axial turbine.
It is suitable for a water head range from 20 meters to 700 meters. With a simple structure, stable operation, and high efficiency, it is generally used within the medium head range (50 meters to 400 meters). The output of a single unit ranges from tens of kilowatts to hundreds of thousands of kilowatts. Currently, the maximum output of this type of turbine has exceeded 700,000 kilowatts, making it one of the most widely used turbines.
- Over 20 years of customization experience
- Exceptional safety and cooling performance
- High efficiency and energy conservation
- Minimal system failure points
- Broad applicability for various operating conditions
- Adaptable to mixed-flow, axial-flow, and other types
Used in small to medium-sized hydropower stations or hydroelectric power plants with rated outputs ranging from 50 kW to 20 MW.
- Exploration and design of hydropower plants
- Design and manufacturing of turbine generator sets
- EPC for electromechanical equipment
- Pre-sales services and technical training
- Installation, commissioning, and maintenance
