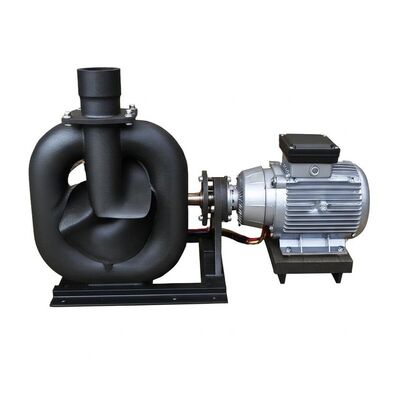

Single Nozzle Water Jet Turbine Incorporating Generator Output Voltage 400V Designed for Sustainable Power Generation

Product Description:

The Pelton Hydro Turbine is a highly efficient and reliable water turbine specifically designed for hydroelectric power generation. Known for its exceptional performance in high-head, low-flow water sources, this turbine harnesses the kinetic energy of water jets to produce consistent and sustainable electricity. Often referred to as a Water Jet Turbine or Pelton Water Wheel, it operates by directing powerful water jets onto specially designed buckets mounted on the runner, converting the water’s energy into rotational motion with remarkable precision.

One of the distinguishing features of the Pelton Hydro Turbine is its variable speed capability, typically ranging from 300 to 1000 RPM. This flexibility allows the turbine to adapt to varying water flow conditions and optimize power output. Whether operating under low or high water flow, the turbine maintains high efficiency, making it an ideal choice for hydroelectric plants located in mountainous or rugged terrain where water flow can fluctuate significantly.

The runner of the Pelton Hydro Turbine is crafted using advanced forged CNC machining techniques, ensuring superior durability, precision, and balance. This high-quality manufacturing process results in a robust runner capable of withstanding the intense forces generated by the high-speed water jets. The precision in the runner’s design directly contributes to the turbine’s overall efficiency and longevity, reducing the risk of mechanical failure and minimizing downtime.

The bucket design on the Pelton Hydro Turbine is another critical element contributing to its outstanding performance. It features either double-cup or spoon-shaped buckets, both engineered to maximize the capture of water jet energy. The double-cup bucket design allows water to split and flow smoothly around the runner, reducing splash losses and increasing torque. The spoon-shaped buckets, on the other hand, offer excellent water jet deflection and energy transfer, making the turbine adaptable to various site conditions and water jet characteristics.

Maintenance requirements for the Pelton Hydro Turbine are generally low to moderate, which is a significant advantage for hydroelectric facilities aiming to reduce operational costs. The sturdy construction of the runner and bucket system, combined with high-quality materials and precision engineering, ensures long service intervals. Routine inspections and minor maintenance tasks are sufficient to keep the turbine operating at peak efficiency for many years. This reliability and ease of maintenance make the Pelton Hydro Turbine a preferred option for many hydroelectric power projects.

In terms of electrical output, the Pelton Hydro Turbine is capable of generating AC power at varying voltages to meet the needs of different power systems. It typically supports generator output voltages of 400V, 6.3KV, or 10.5KV AC, allowing seamless integration with local grids or industrial power networks. This versatility in generator output voltage makes it suitable for a wide range of applications, from small-scale hydroelectric plants to larger energy generation facilities.

As a Hydro Jet Turbine, the Pelton system efficiently converts the kinetic energy of water jets into mechanical and then electrical energy with minimal losses. Its design principles have been proven over decades, making it a trusted solution in the renewable energy sector. Whether deployed in remote locations or as part of a larger hydroelectric power scheme, the Pelton Hydro Turbine offers reliable, clean, and renewable power generation with excellent operational flexibility.

In summary, the Pelton Hydro Turbine combines advanced engineering, durable construction, and adaptable design features to deliver superior performance in hydroelectric power generation. With its variable speed operation, forged CNC machined runner, low maintenance needs, and versatile bucket designs, it stands out as a premier Water Jet Turbine and Hydro Jet Turbine solution. Its ability to generate electricity at multiple voltage levels further enhances its applicability across diverse hydroelectric projects, ensuring sustainable energy production for years to come.

Features:

• Product Name: Pelton Hydro Turbine
• Type: Water Impulse Turbine
• Turbine Material: Q345-B
• Runner Material: Stainless Steel
• Capacity: 700kW
• Water Flow: 0.76 M³/s
• Design Head: 200m - 600m
• Suitable for High-Pressure Turbine applications
• Efficient High-Pressure Turbine designed for optimal performance

Technical Parameters:

Applications:

The Wawushan Pelton Hydro Turbine, model CJA-2025, is a versatile and highly efficient solution designed for various hydroelectric power generation applications. Originating from China and certified with ISO9001, this turbine is engineered to deliver reliable performance in diverse environments, making it ideal for both small and medium-scale hydropower projects. With a minimum order quantity of just one unit and a competitive price of 50,000, it presents an accessible option for developers and engineers worldwide.

This Pelton Water Wheel turbine is especially suitable for high-head, low-flow water sources where conventional turbines may not perform effectively. Its advanced double-cup or spoon-shaped bucket design enhances energy capture from water jets, optimizing the conversion of kinetic energy into mechanical power. The turbine’s nozzle ring, made from high-quality stainless steel 0Cr13Ni4Mo (CA6NM), ensures durability and resistance to corrosion, even in harsh water conditions. Additionally, the runner material is constructed from stainless steel, providing high strength and longevity, which significantly reduces maintenance requirements to low to moderate levels.

The Wawushan CJA-2025 model can be deployed in various application scenarios including remote mountainous regions, small rivers, and irrigation canals where water jets can be effectively harnessed. It is also suitable for integration into micro-hydropower stations and off-grid renewable energy systems. This Water Jet Turbine is an excellent choice for communities seeking sustainable and eco-friendly energy sources. The turbine’s axial-flow design allows it to handle variable water flow conditions efficiently, making it adaptable to fluctuating natural water supplies.

Manufactured with a supply capacity of 100 sets per unit and a delivery time of six months, the Wawushan Pelton Hydro Turbine can be procured under favorable payment terms such as L/C. Its high strength and anti-corrosion properties make it resistant to wear and environmental degradation, ensuring a long service life and consistent performance. This turbine is ideal for hydroelectric power projects requiring a robust, low-maintenance, and high-efficiency solution capable of operating in demanding conditions.

In summary, the Wawushan CJA-2025 Pelton Water Wheel turbine offers a reliable and cost-effective solution for harnessing hydro energy in various scenarios. Its combination of superior materials, innovative bucket design, and robust construction makes it a preferred choice for engineers and project developers aiming to optimize energy output while minimizing operational costs. Whether for small-scale hydropower plants, rural electrification, or industrial power needs, this Water Jet Turbine, with its axial-flow characteristics, stands out as a dependable and efficient energy conversion device.

Customization:

The Wawushan Pelton Hydro Turbine, model number CJA-2025, is a high-efficiency Pelton Water Wheel designed for optimal performance in hydroelectric power generation. Manufactured in China and certified with ISO9001, this Water Impulse Turbine offers an efficiency of up to 90%, making it a reliable choice for sustainable energy projects.

With a rated flow of 0.75 M3/s and a design head ranging from 200m to 600m, this Reaction Hydro Turbine operates at variable speeds typically between 300 to 1000 RPM. The runner is crafted from durable stainless steel to ensure long-lasting performance and resistance to wear.

Wawushan offers customizable options with a minimum order quantity of just 1 set. Priced at 50,000 USD, the delivery time is approximately 6 months, with payment terms on L/C. The supply ability stands at 100 sets per unit time, ensuring availability for both small and large-scale projects.

Choose the Wawushan CJA-2025 Pelton Hydro Turbine for a dependable and efficient solution in hydro power, combining advanced Water Impulse Turbine technology with robust Reaction Hydro Turbine design.

Support and Services:

Our Pelton Hydro Turbine product is supported by a dedicated technical support team committed to ensuring optimal performance and reliability. We offer comprehensive services including installation guidance, routine maintenance, troubleshooting, and repair assistance to maximize the efficiency and lifespan of your turbine.

Our experts provide detailed documentation and user manuals that cover operational procedures, safety protocols, and technical specifications. Additionally, we offer training sessions for operators and maintenance personnel to ensure proper handling and upkeep of the equipment.

For any technical issues, our support team is equipped to diagnose problems remotely or on-site, providing timely solutions to minimize downtime. Spare parts and replacement components are readily available to maintain continuous operation.

We also offer customized maintenance contracts tailored to your specific operational needs, ensuring regular inspections and preventive care to avoid unexpected failures. Our goal is to support you throughout the lifecycle of your Pelton Hydro Turbine, delivering reliable and efficient hydroelectric power generation.
