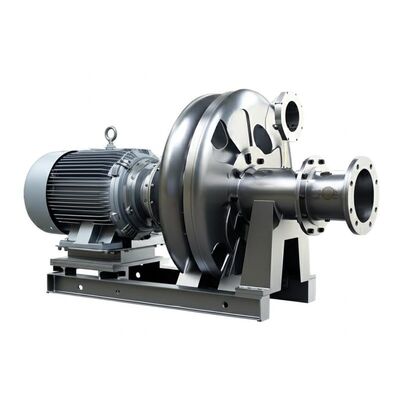

Water Flow 0.76 M³s Hydro Jet Turbine Design Head 200m 600m Turbine Technology for Renewable Energy Generation Projects
Product Details:
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | CJA-2025 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Set Per Unit |
|
Detail Information |
|||
| Water Flow: | 0.76 M³/s | Nozzle Ring: | Stainless Steel 0Cr13Ni4Mo (CA6NM) |
|---|---|---|---|
| Rated Flow: | 0.75 M3/s | Tubine Material: | Q345-B |
| Runner Material: | Stainless Steel | Bucket Design: | Double-cup Or Spoon-shaped |
| Maintenance: | Low To Moderate | Generator Output Voltage: | 400V, 6.3KV, Or 10.5KV AC |
| Highlight: | Pelton hydro turbine with warranty,200m head hydro jet turbine,renewable energy water flow turbine |
||
Product Description
Product Description:
The Pelton Hydro Turbine is a highly efficient and robust solution designed for harnessing energy from high-pressure water sources. As a type of Pelton Water Wheel, this turbine excels in converting the kinetic energy of water jets into mechanical energy, making it ideal for hydroelectric power generation in mountainous regions and other locations with significant water head. The design of the Pelton Hydro Turbine incorporates a single nozzle, which directs a high-velocity water jet onto the turbine buckets, maximizing energy transfer and ensuring optimal performance.
One of the key components of the Pelton Hydro Turbine is its nozzle ring, which is constructed from stainless steel 0Cr13Ni4Mo, also known as CA6NM. This material is chosen for its excellent corrosion resistance, durability, and ability to withstand the harsh conditions often encountered in hydroelectric environments. The high-quality stainless steel nozzle ring ensures long-lasting performance and minimal wear, contributing to the overall reliability of the turbine.
The turbine's main body is fabricated from Q345-B steel, a material known for its strength and toughness. Q345-B offers excellent mechanical properties that help the turbine withstand the intense forces generated by high-pressure water jets. This robust construction enhances the turbine’s durability and structural integrity, making it a dependable choice for long-term hydroelectric projects.
Efficiency is a crucial factor in hydro turbine performance, and the Pelton Hydro Turbine achieves an impressive efficiency of up to 90%. This high efficiency is a result of the precise engineering of the turbine components, including the single nozzle design and the optimized bucket shape of the Pelton Water Wheel. By efficiently converting water energy into mechanical power, this turbine helps maximize electricity generation while minimizing water consumption.
In comparison to other types of turbines, such as axial-flow turbines, the Pelton Hydro Turbine is specifically designed for high-head, low-flow applications. While axial-flow turbines are generally suited for low-head, high-flow situations, the Pelton Hydro Turbine’s high-pressure capability makes it an ideal choice for sites where water pressure is significant but flow rates are relatively lower. This specialization allows it to operate effectively under conditions that axial-flow turbines might not handle efficiently.
Maintenance requirements for the Pelton Hydro Turbine range from low to moderate, depending on operational conditions and water quality. Thanks to the durable materials used in construction, including the stainless steel nozzle ring and the Q345-B turbine body, routine maintenance is straightforward and cost-effective. Periodic inspections and minor adjustments to the single nozzle system help sustain optimal performance and extend the turbine’s service life.
Overall, the Pelton Hydro Turbine represents a reliable and efficient solution for hydroelectric power generation in high-pressure environments. Its use of advanced materials, such as stainless steel 0Cr13Ni4Mo for the nozzle ring and Q345-B for the turbine structure, combined with a single nozzle design and a Pelton Water Wheel mechanism, ensures exceptional durability and energy conversion efficiency. Whether deployed in small-scale hydropower plants or larger installations, this high-pressure turbine offers a sustainable and effective means of generating clean energy.
Features:
- Product Name: Pelton Hydro Turbine
- Nozzle Ring made of Stainless Steel 0Cr13Ni4Mo (CA6NM) for durability and corrosion resistance
- Bucket Design options: Double-cup or Spoon-shaped for optimized water impact
- Speed: Variable, typically ranging from 300 to 1000 RPM to suit different operational needs
- Maintenance: Low to moderate, ensuring efficient and reliable performance
- Water Flow capacity: 0.76 M³/s, ideal for various hydro power applications
- As a Hydro Jet Turbine, it efficiently converts high-pressure water jets into mechanical energy
- Designed as a Hydro Jet Turbine, it maximizes energy extraction from water flow
- The Pelton Hydro Turbine is a premium Hydro Jet Turbine solution for sustainable energy generation
Technical Parameters:
| Nozzle | Single |
| Design Head | 200m-600m |
| Generator Output Voltage | 400V, 6.3KV, Or 10.5KV AC |
| Water Flow | 0.76 M³/s |
| Capacity | 700kW |
| Nozzle Ring | Stainless Steel 0Cr13Ni4Mo (CA6NM) |
| Rated Flow | 0.75 M³/s |
| Speed | Variable, Typically 300 To 1000 RPM |
| Runner Material | Stainless Steel |
| Runner | Forged CNC Machine |
Applications:
The Wawushan CJA-2025 Pelton Hydro Turbine is an advanced Water Impulse Turbine designed to deliver exceptional performance in a variety of hydroelectric power generation applications. Manufactured in China and certified with ISO9001, this high-efficiency turbine is engineered to optimize energy extraction from water jets, making it ideal for use in small to medium-scale hydroelectric plants. With a rated flow of 0.75 M³/s and a water flow capacity of 0.76 M³/s, the CJA-2025 model provides reliable and consistent power output, supporting sustainable energy solutions in remote or off-grid locations.
This Hydro Jet Turbine is particularly suited for mountainous or hilly terrain where water sources have high heads but relatively low flow rates. Its bucket design, featuring double-cup or spoon-shaped buckets, ensures maximum impulse capture from fast-moving water jets, significantly enhancing the turbine’s efficiency. The runner, forged from high-quality stainless steel using precise CNC machining, guarantees durability and resistance to wear and corrosion, even under challenging operational conditions. This combination makes the CJA-2025 a robust choice for long-term hydroelectric projects.
Typical application scenarios for the Wawushan Pelton Hydro Turbine include small hydropower plants serving rural communities, industrial facilities requiring reliable green energy, and off-grid power stations in remote areas. The turbine’s compact design and capacity to handle water flows around 0.75 M³/s make it well-suited for rivers, streams, and water channels with fluctuating water volumes. Additionally, due to its high efficiency and impulse-driven mechanism, it can be integrated into hybrid renewable energy systems to maximize overall energy production.
With a minimum order quantity of just one unit and a competitive price of $50,000, the CJA-2025 model is accessible for a wide range of projects. Wawushan offers a delivery time of six months and flexible payment terms via L/C, supporting efficient procurement and project planning. The supply ability of 100 sets per unit ensures availability for multiple installations. Overall, the Wawushan Pelton Hydro Turbine is an excellent choice for those seeking a reliable, high-performance Water Impulse Turbine that combines cutting-edge design with proven durability and efficiency.
Customization:
The Wawushan Pelton Hydro Turbine, model number CJA-2025, is a high-quality axial-flow turbine designed and manufactured in China with ISO9001 certification. This hydro jet turbine features a single nozzle and is constructed from durable Q345-B material, ensuring long-lasting performance with low to moderate maintenance requirements.
With a variable speed range typically between 300 to 1000 RPM, this hydro jet turbine offers flexible operation to meet diverse energy demands. The generator output voltage options include 400V, 6.3KV, or 10.5KV AC, providing compatibility with various power systems.
Wawushan offers this Pelton Hydro Turbine with a minimum order quantity of 1 set, priced at $50,000 per unit. Delivery time is approximately 6 months, supported by a strong supply ability of 100 sets per year. Payment terms are based on L/C to ensure secure transactions.
Choose the Wawushan Pelton Hydro Turbine CJA-2025 for efficient and reliable axial-flow turbine solutions tailored to your hydro energy projects.
Support and Services:
Our Pelton Hydro Turbine product is supported by a dedicated team of technical experts committed to ensuring optimal performance and reliability. We provide comprehensive technical support including installation guidance, operational training, routine maintenance advice, and troubleshooting assistance. Our services also encompass customized solutions tailored to specific site conditions and power requirements, ensuring maximum efficiency and durability of your hydro turbine system. Additionally, we offer periodic inspections and upgrades to keep your equipment up-to-date with the latest technological advancements. Trust our skilled service professionals to support your Pelton Hydro Turbine throughout its lifecycle, maximizing energy output and minimizing downtime.
