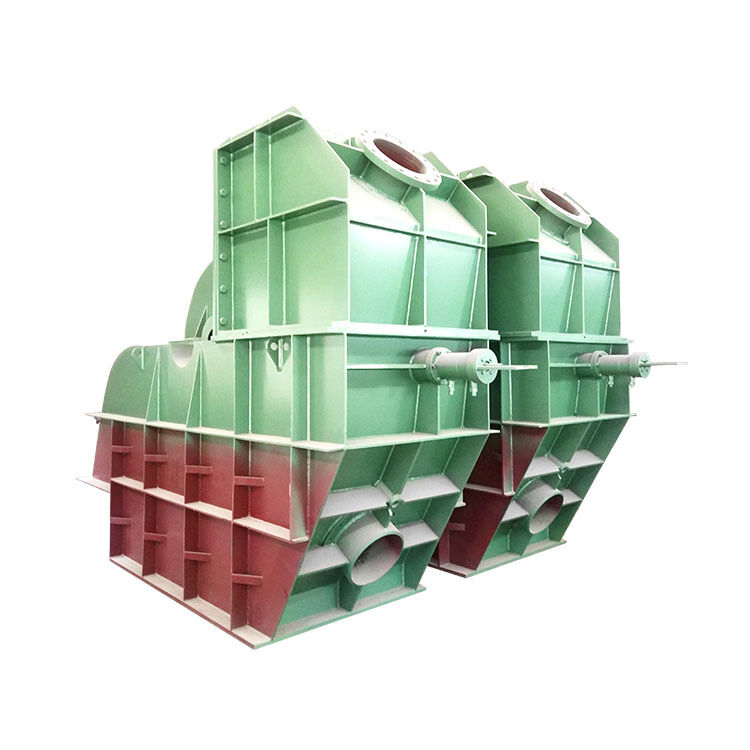

Stainless Steel 0Cr13Ni4Mo Pelton Hydro Turbine with Dual Nozzles and 750r/min Rated Speed for High Efficiency
Product Details:
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | CJA-202513 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
| Packaging Details: | Standard |
| Delivery Time: | 6 Months |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set Per Unit |
|
Detail Information |
|||
| Rated Speed: | 750r/min | Productname: | Pelton Hydro Turbine |
|---|---|---|---|
| Flow Rate: | 1-200 M3/s | Head: | 50-1000 M |
| Nozzle Ring: | Stainless Steel 0Cr13Ni4Mo (CA6NM) | Type: | Impulse Turbine |
| Nozzle Number: | Dual Nozzles | Runner Type: | Single Or Multi-Jet |
| Highlight: | Stainless Steel 0Cr13Ni4Mo Pelton Hydro Turbine,Dual Nozzles Pelton Water Wheel,750r/min Rated Speed Water Impulse Turbine |
||
Product Description

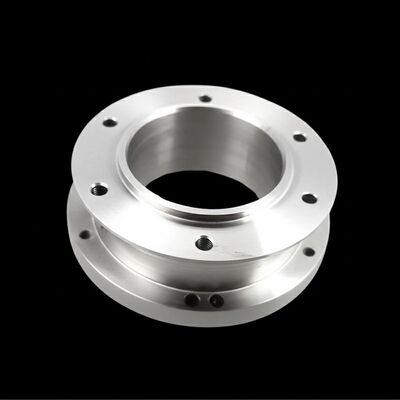

Stainless Steel 0Cr13Ni4Mo Nozzle Ring Pelton Water Wheel
High-performance hydropower turbine part with exceptional strength and corrosion resistance for demanding hydroelectric applications.
Product Overview
The Pelton Hydro Turbine is a highly efficient and robust solution designed for high-head hydroelectric power generation. Known for its exceptional performance under varying conditions, this turbine effectively converts the kinetic energy of water jets into mechanical energy for reliable power production.
Key Features
- Product Name: Pelton Hydro Turbine
- Runner Type: Single or Multi-Jet
- Rated Speed: 750 r/min
- Water Head Range: 100m - 800m
- Design Head Range: 200m - 600m
- Type: High-Pressure Turbine
- Category: Water Jet Turbine
- Efficiency: High-Efficiency Turbine design for optimal performance
Technical Specifications
| Power Capacity | 1-200 MW |
| Water Head | 100m-800m |
| Design Head | 200m-600m |
| Efficiency | Up To 90% Or Higher |
| Bucket Design | Double Cup Or Split Bucket |
| Runner Type | Single Or Multi-Jet |
| Nozzle Ring Material | Stainless Steel 0Cr13Ni4Mo (CA6NM) |
| Noise Level | Low |
| Key Advantages | High Strength, Anti Corrosion |
Design Advantages
The Pelton Hydro Turbine features a dual-nozzle configuration that directs powerful water jets precisely onto runner buckets, maximizing energy extraction and providing operational flexibility across varying flow conditions.
Applications
Ideal for high-head hydroelectric power plants, remote mountainous regions, small to medium-sized hydroelectric stations, rural electrification projects, and industrial power systems requiring reliable renewable energy generation.
Customization Options
The Wawushan CJA-2025 Pelton Hydro Turbine offers extensive customization with power capacities from 1 to 200 MW and flow rates between 1 to 200 M³/s to meet specific project requirements.
Support & Services
Comprehensive technical support including installation consultation, maintenance guidelines, troubleshooting assistance, preventive maintenance services, genuine spare parts, and operator training programs.
Additional Details
Model: CJA-2025 | Certification: ISO9001 | Delivery Time: ~6 months | Minimum Order: 1 unit | Supply Capacity: 100 sets per period
