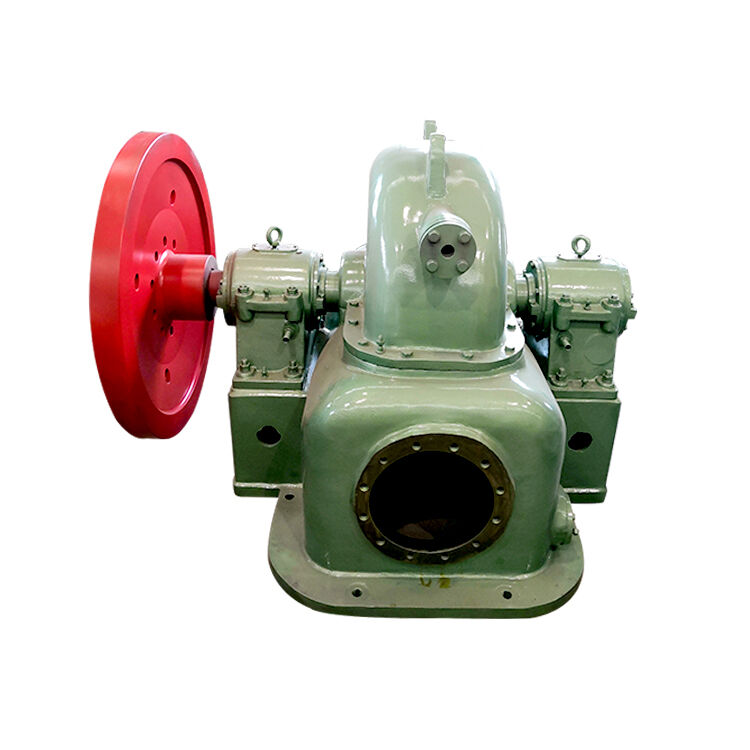

Dual Nozzles Pelton Hydro Turbine with Stainless Steel 0Cr13Ni4Mo Nozzle Ring and Up To 90% Efficiency for High-Pressure Hydroelectric Applications

Dual Nozzles Pelton Hydro Turbine with Stainless Steel 0Cr13Ni4Mo Nozzle Ring and Up To 90% Efficiency for High-Pressure Hydroelectric Applications
Double Cup or Split Bucket Pelton Hydro Turbine High-efficiency hydroelectric turbine designed for flow rates of 1-200 m³/s and power capacity of 1-200 MW, ideal for high-head applications. Product Overview The Pelton Hydro Turbine is a highly efficient impulse turbine engineered for hydroelectric ...
Brand Name:WaWuShan
Certification:ISO
Model Number:SFW-200KW (2000KW)
Minimum Order Quantity:1
Price:200000
Product Custom Attributes
Highlight

Dual Nozzles Pelton Hydro Turbine

,

Stainless Steel 0Cr13Ni4Mo Hydro Jet Turbine

,

Up To 90% Efficiency Water Impulse Turbine

Power Capacity:
1-200 MW
Nozzle Number:
Dual Nozzles
Nozzle Ring:
Stainless Steel 0Cr13Ni4Mo (CA6NM)
Type:
Impulse Turbine
Advantages:
High Strength\Anti Corrosion
Design Head:
200m-600m
Efficiency:
Up To 90% Or Higher
Runner Type:
Single Or Multi-Jet
Material:
Copper
Product Description
Double Cup or Split Bucket Pelton Hydro Turbine
High-efficiency hydroelectric turbine designed for flow rates of 1-200 m³/s and power capacity of 1-200 MW, ideal for high-head applications.
Product Overview
The Pelton Hydro Turbine is a highly efficient impulse turbine engineered for hydroelectric power generation in high-head applications ranging from 50 to 1000 meters. This hydro jet turbine converts the kinetic energy of high-velocity water jets into mechanical energy through an innovative double cup or split bucket design that maximizes energy extraction while minimizing water splashing and turbulence.
Key Features
  • Product Name: Pelton Hydro Turbine
  • Type: Impulse Turbine
  • Efficiency: Up to 90% or higher for optimal energy conversion
  • Nozzle Number: Dual nozzles for enhanced water jet control
  • Flow Rate: Suitable for 1-200 m³/s, adaptable to various water flow conditions
  • Nozzle Ring Material: Stainless Steel 0Cr13Ni4Mo (CA6NM) for durability and corrosion resistance
  • Design: Hydro Jet Turbine ideal for high-pressure applications
  • Operation: Utilizes impulse rather than reaction principles
  • Application: High-Pressure Turbine optimized for mountainous and high-head water sources
Technical Specifications
Product Name Pelton Hydro Turbine
Type Impulse Turbine
Water Head 100m-800m
Design Head 200m-600m
Nozzle Number Dual Nozzles
Nozzle Ring Stainless Steel 0Cr13Ni4Mo (CA6NM)
Rated Speed 750 r/min
Runner Type Single or Multi-Jet
Bucket Design Double Cup or Split Bucket
Advantages High Strength, Anti-Corrosion
Applications
The Wawushan CJA-2025 Pelton Hydro Turbine delivers high efficiency and reliability across various hydroelectric applications. With power capacity from 1 to 200 MW, it's suitable for small to large-scale projects including mountainous regions, hydroelectric power plants, micro-hydropower stations for rural electrification, industrial plants, and grid-connected facilities.
Customization & Ordering
Model: CJA-2025
Minimum Order: 1 unit
Price: $50,000
Supply Capacity: 100 sets per year
Delivery Time: 6 months
Payment Terms: L/C
Certification: ISO9001
Technical Support & Services
Our dedicated technical support team provides comprehensive services including installation guidance, routine maintenance advice, troubleshooting assistance, performance optimization, system diagnostics, spare parts identification, and upgrade recommendations. We offer on-site support and training sessions to ensure optimal performance and longevity of your turbine installation.
