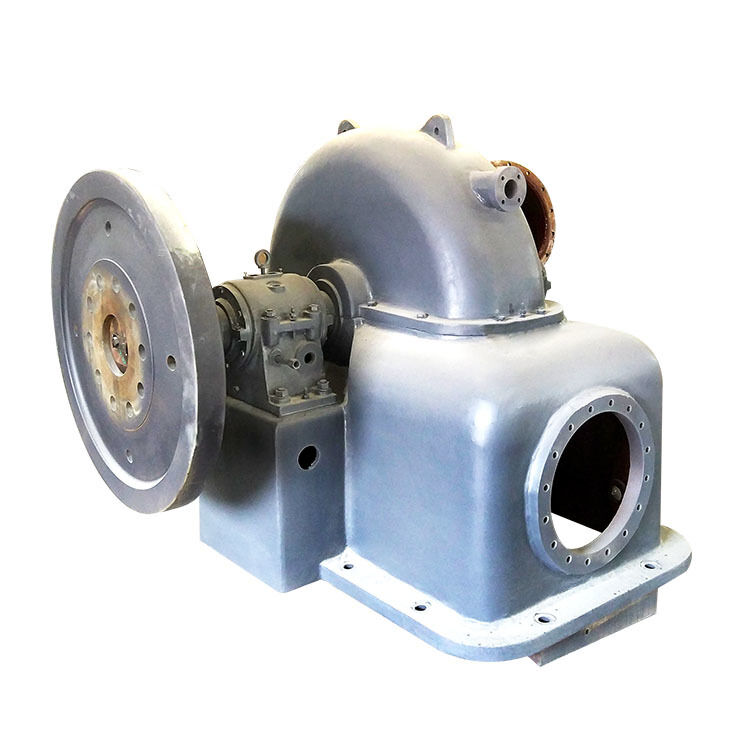

750r/min Rated Speed Pelton Hydro Turbine with 1-200 MW Power Capacity and Up To 90% Efficiency for Industrial Applications
Product Details:
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | CJA-202514 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
| Packaging Details: | Standard |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Set Per Unit |
|
Detail Information |
|||
| Type: | Impulse Turbine | Bucketdesign: | Double Cup Or Split Bucket |
|---|---|---|---|
| Rated Speed: | 750r/min | Advantages: | High Strength\Anti Corrosion |
| Nozzle Number: | Dual Nozzles | Noise Level: | Low |
| Head: | 50-1000 M | Efficiency: | Up To 90% Or Higher |
| Highlight: | 750r/min Rated Speed Pelton Hydro Turbine,1-200 MW Power Capacity Hydro Jet Turbine,Up To 90% Efficiency Water Impulse Turbine |
||
Product Description
Pelton Hydro Turbine: High-Efficiency Power Generation
The Pelton Hydro Turbine is a highly efficient and reliable solution designed for harnessing hydro power across diverse applications. Engineered for robust performance and superior design, this turbine is ideal for projects requiring power capacities from 1 MW to 200 MW. It excels in high-head environments with design heads between 200-600 meters and operates effectively within an overall head range of 50-1000 meters.
At the core of this system is the Pelton Water Wheel, a Water Impulse Turbine that converts the kinetic energy of water jets into mechanical energy with exceptional efficiency. Unlike reaction turbines that rely on pressure changes, the Pelton turbine directs high-velocity water jets onto specially designed cups or buckets arranged around the runner, capturing maximum energy from flowing water.
The turbine features versatile runner configurations as either single or multi-jet, adapting to specific site conditions and power requirements. Single-jet runners suit lower power capacities or limited water flow, while multi-jet configurations handle larger water volumes for increased power output and operational flexibility.
Key advantages include low noise operation achieved through precise engineering and component balancing, ensuring smooth performance under varying load conditions while minimizing environmental impact.
Product Features
- Product Name: Pelton Hydro Turbine
- Type: Impulse Turbine
- Nozzle Number: Dual Nozzles
- Nozzle Ring Material: Stainless Steel 0Cr13Ni4Mo (CA6NM)
- Rated Speed: 750 r/min
- Noise Level: Low
- Designed as High-Pressure Turbine for efficient energy conversion
- Incorporates Axial-Flow Turbine design features for optimized flow dynamics
- Combines benefits of Pelton and Axial-Flow Turbine technologies
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Pelton Hydro Turbine |
| Bucket Design | Double Cup or Split Bucket |
| Efficiency | Up to 90% or Higher |
| Rated Speed | 750 r/min |
| Advantages | High Strength, Anti-Corrosion |
| Water Head | 100m - 800m |
| Noise Level | Low |
| Power Capacity | 1 - 200 MW |
| Design Head | 200m - 600m |
| Nozzle Ring | Stainless Steel 0Cr13Ni4Mo (CA6NM) |
Applications
The Wawushan Pelton Hydro Turbine (Model CJA-2025) is designed for hydroelectric power generation across water head conditions from 50-1000 meters, with optimal performance at 100m-800m. Ideal for mountainous regions and steep river sites with high water head and low flow rates, this turbine ensures stable and efficient operation at 750 r/min, maximizing energy output from available water resources.
With advanced bucket design featuring double cup or split bucket configurations, the turbine efficiently converts kinetic energy of water jets into mechanical energy. This makes it particularly suitable as a Hydro Jet Turbine where high-pressure water jets impact turbine buckets to generate power.
Applications include remote village electrification, small-scale hydropower plants, and industrial power generation where water resources are abundant but flow rates are limited. ISO9001 certified construction guarantees quality and reliability for small to medium hydroelectric projects.
Customization Options
Wawushan's Pelton Hydro Turbine (Model CJA-2025) offers comprehensive customization services tailored to specific hydroelectric power generation needs. Manufactured in China with ISO9001 certification, this Hydro Jet Turbine ensures high quality and reliable performance across its 1-200 MW power capacity range.
Featuring stainless steel 0Cr13Ni4Mo (CA6NM) nozzle rings for enhanced durability and operational stability, the turbine is designed for flexible integration with Axial-Flow Turbine systems and other hydroelectric applications.
Support and Services
Our Pelton Hydro Turbine is supported by dedicated technical experts committed to ensuring optimal performance and equipment longevity. We provide comprehensive support services including installation guidance, operational training, routine maintenance advice, and troubleshooting assistance.
Services encompass detailed inspection protocols, performance monitoring, efficiency upgrades, and customized maintenance schedules. We supply genuine spare parts and replacement components to maintain system integrity and functionality, with expert consultancy available for specialized engineering solutions.
Want to Know more details about this product
