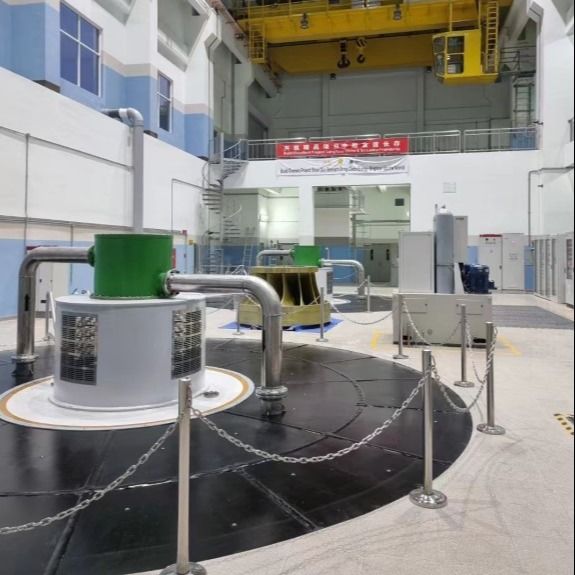

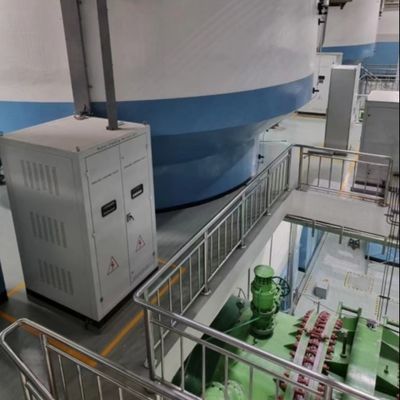

Vertical Kaplan Hydro Turbine with Adjustable Blades and Stainless Steel Runner for 6300V Hydroelectric Power Generation
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | ZDJP-019 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood |
| Delivery Time: | 180 wordking days |
| Payment Terms: | T/T |
| Supply Ability: | 1+unit+4 months |
|
Detail Information |
|||
| Runner Material: | Stainless Steel | Voltage: | 6300V |
|---|---|---|---|
| Layout: | Vertical | Runner Blade: | Adjustable |
| Runner Diameter: | 1.7 M | Flow: | 19.77 M³/s |
| Highlight: | Vertical Mini Kaplan Hydro Turbine,Power Plant Kaplan Hydro Turbine,6300V small kaplan turbine |
||
Product Description
Vertical 4500kW Kaplan Water Turbine Generator
Axial flow Kaplan hydro turbine featuring adjustable blades for efficient hydroelectric power generation in power plant applications.
Product Overview
The Kaplan turbine is an axial-flow reaction turbine designed as a propeller with adjustable blades inside a tube. Water flows through the runner parallel to the axis of rotation, utilizing both kinetic and pressure energy for optimal blade rotation in hydro-power stations.
Technical Considerations
Cavitation Management
Kaplan turbines may experience cavitation due to pressure drop in the draft tube. This is effectively mitigated through proper draft tube design and the use of stainless steel runner blades.
Specifications
| Product Name | Vertical Min 4500kw Kaplan Water Turbine Generator For Power Plant |
| Water Head | 29.0m |
| Runner Diameters | 2.5m |
| Capacity | 4500KW |
| Frequency | 50HZ |
| Generator Voltage | 6300V |
| Layout Pattern | Vertical |
| Blade Material | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless |
| Generator Insulation | F/F |
| Lifespan | 50 years |
Why Choose Our Kaplan Turbines?
- Over 20 years of industry experience with 150+ equipment installations annually
- Complete hydro power plant solutions from water to wire
- Extensive international project experience in France, Japan, USA, South Africa, Sri Lanka, Iran, and Southeast Asia
- Custom design and manufacturing of hydro generators with voltages from 400V to 6.3KV and capacities exceeding 1000kW
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a hydro turbine generator manufacturer with over 20 years of experience. Our factory is located in Sichuan, approximately 2 hours from Shuangliu Airport. We welcome factory visits to showcase our capabilities.
How do I select the right water turbine?
We require key parameters including water head, flow rate, voltage level, frequency, grid connection type, and automation requirements to provide the optimal solution.
Do you provide EPC services for hydro power plants?
Yes, we offer comprehensive Engineering, Procurement, and Construction services including equipment design, manufacturing, and installation with our technical team.
