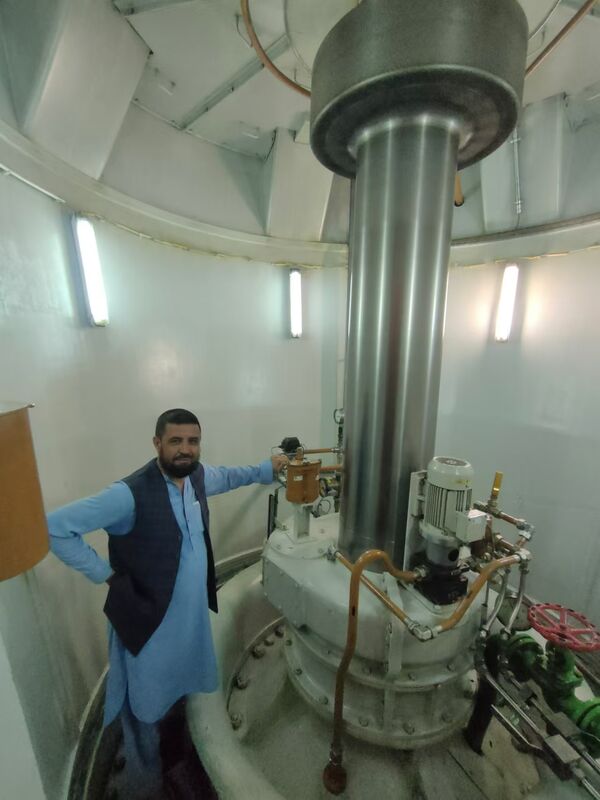

Stainless Steel 0Cr13Ni14Mo Blades Kaplan Hydro Turbine with Vertical Water Inlet and Water Cooled System
Product Details:
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | ZDJ502-202507 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
Detail Information |
|||
| Cost: | Affordable | Hub Material: | Carbon Steel |
|---|---|---|---|
| Voltage: | 400V | Coolingmethod: | Water Cooled |
| Blades Material: | Stainless Steel 0Cr13Ni14Mo | Guide Vane Material: | Stainless Steel/Cast Iron |
| Water Inlet: | Vertical | Runner Weight: | 2-50T |
| Highlight: | Stainless Steel 0Cr13Ni14Mo Blades Kaplan Hydro Turbine,Vertical Water Inlet Kaplan Hydro Turbine,Water Cooled Kaplan Hydro Turbine |
||
Product Description
Kaplan Hydro Turbine Overview
The Kaplan Hydro Turbine is an advanced hydraulic power turbine engineered for maximum efficiency and reliability in hydroelectric power generation. Constructed from high-quality stainless steel, this turbine delivers exceptional durability and corrosion resistance, ensuring long-term performance in demanding aquatic environments.
Key Features
- Product Name: Kaplan Hydro Turbine
- Head Range: 2 to 70 meters
- Runner Weight: 2-50 tons
- Runner Diameter: 0.7 meters
- Cooling Method: Water Cooled
- Water Inlet: Vertical design for optimized flow
- Efficient hydraulic energy conversion for optimal performance
- Advanced hydraulic turbine system ensuring reliable power generation
- Robust construction suitable for various hydroelectric applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Cost | Affordable |
| Head Range | 2 to 70 Meters |
| Material | Stainless Steel |
| Rated Power | 2-50MW |
| Runner Diameter | 0.7 M |
| Hub Material | Carbon Steel |
| Blades Material | Stainless Steel 0Cr13Ni14Mo |
| Guide Vane Material | Stainless Steel/Cast Iron |
| Runner Weight | 2-50T |
| Maintenance | Low to Moderate, with adjustable blades for easy servicing |
Advanced Design Features
The turbine features adjustable blades crafted from premium stainless steel 0Cr13Ni14Mo, providing superior strength and corrosion resistance. This blade technology allows precise water flow control, optimizing efficiency across varying water volumes and flow rates. The vertical water inlet design minimizes turbulence and enhances hydraulic efficiency, while the water-cooled system maintains optimal operating temperatures for extended equipment life.
Applications
The Wawushan Kaplan Hydro Turbine (Model ZDJ502) is an ISO9001 certified hydraulic energy turbine designed to convert hydraulic energy into electrical power with rated outputs from 2MW to 50MW. Suitable for installation in bulb, pit, or tube type configurations, this turbine is ideal for low to medium head water sources including rivers, dams, and reservoirs.
Primary Application Scenarios
• Renewable energy projects for sustainable electricity generation
• Remote or rural areas requiring reliable power access
• Industrial power generation facilities
• Community electrification projects
• Large-scale hydropower plants
• Remote or rural areas requiring reliable power access
• Industrial power generation facilities
• Community electrification projects
• Large-scale hydropower plants
Customization Options
Wawushan offers customized hydro power turbine solutions with flexible material options including stainless steel or cast iron guide vanes and premium 0Cr13Ni14Mo stainless steel blades. Each turbine features vertical water inlet design and is packaged for safe export delivery.
Technical Support & Services
Our comprehensive technical support ensures optimal turbine performance throughout its lifecycle. Services include:
- Installation Support: Comprehensive setup and commissioning assistance
- Preventive Maintenance: Scheduled services to maximize efficiency and equipment life
- Spare Parts Supply: Genuine replacement parts for maintained performance
- Technical Troubleshooting: Expert analysis to minimize operational downtime
- Performance Optimization: Consultation for enhanced output and flow adaptation
- Training Programs: Operator and maintenance personnel training
- Upgrades & Modernization: Technology improvements and regulatory compliance solutions
All specifications and features are subject to technical verification and may vary based on specific project requirements.
