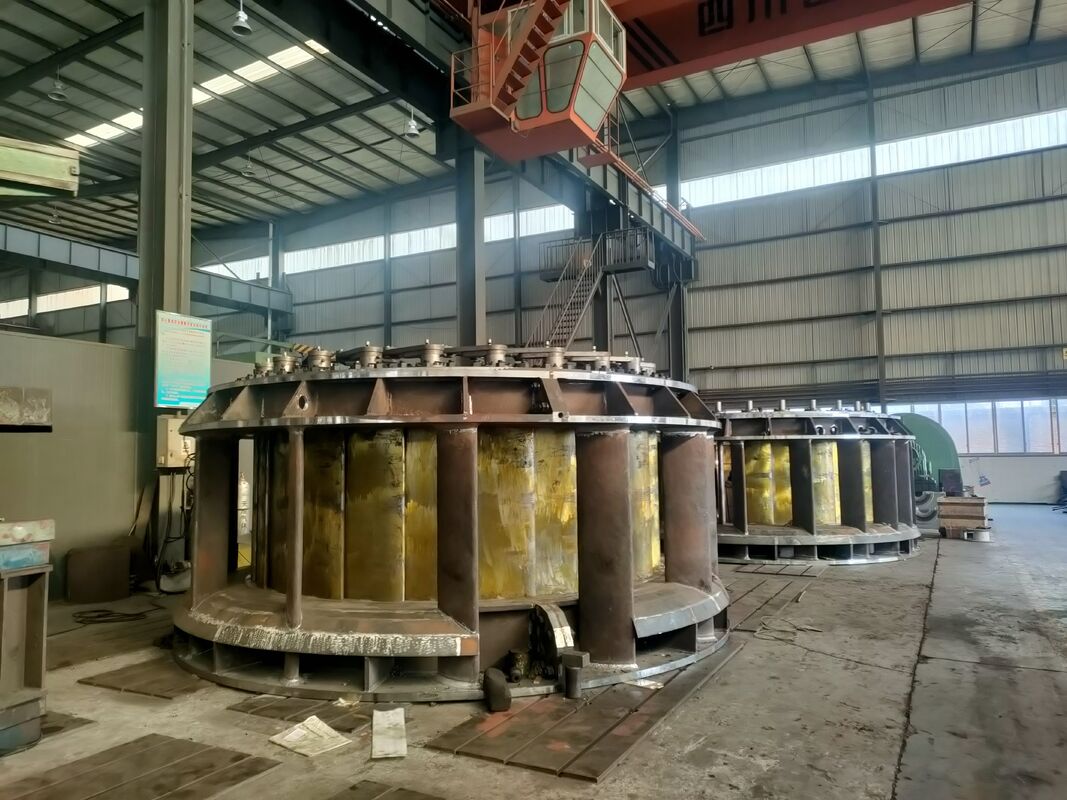

Stainless Steel Blade Kaplan Hydro Turbine with Rated Power 2-50MW and Life Time Over 30 Years for Hydropower Projects
Product Details:
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | ZDJ50224 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
Detail Information |
|||
| Material: | Stainless Steel Blade | Water Head: | 8 M |
|---|---|---|---|
| Power: | 100KW -- 30000KW | Runner Blade Angle: | 15° - 30° |
| Rated Power: | 2-50MW | Housing: | Carbon Steel |
| Bearing Cooling Type: | Oil-water Cooling | Life Time: | Over 30 Years |
| Highlight: | Stainless Steel Blade Kaplan Hydro Turbine,Rated Power 2-50MW Hydro Power Turbine,Life Time Over 30 Years Hydraulic Water Turbine |
||
Product Description
Kaplan Hydro Turbine - Robust Renewable Energy Generator
The Kaplan Hydro Turbine is an advanced hydraulic water turbine engineered to efficiently convert hydraulic energy into mechanical and electrical power. Designed for exceptional performance and durability, this hydro power turbine is ideal for diverse hydroelectric power generation applications.
Product Features
- Product Name: Kaplan Hydro Turbine
- Type: Hydraulic Turbine Generator
- Water Inlet: Vertical design for optimized flow
- Runner Blade Angle: Adjustable between 15° - 30° for optimal efficiency
- Guide Vanes Material: Durable ZG20SiMn alloy
- Water Head: Suitable for 8 M water head applications
- Generator Voltage: Operates at 6300V
- Efficient hydraulic energy turbine suitable for various hydroelectric projects
Technical Specifications
| Parameter | Specification |
|---|---|
| Generator Voltage | 6300V |
| Water Head | 8 M |
| Power Range | 100KW - 30000KW |
| Runner Blade Angle | 15° - 30° |
| Material | Stainless Steel Blade |
| Rated Power | 2-50MW |
| Guide Vane Material | Stainless Steel / Cast Iron |
| Rated Head | 2-200m |
| Guide Vanes Material | ZG20SiMn |
| Housing | Carbon Steel |
Applications
The Wawushan Kaplan Hydro Turbine (model ZDJ502) is designed for a wide range of hydroelectric power generation applications. Certified with ISO9001, this hydraulic turbine system offers reliable performance for both small-scale and large-scale projects including river-based hydroelectric plants, dam power stations, and renewable energy projects requiring efficient water flow management.
Customization Options
Wawushan provides comprehensive customization services for the Kaplan Hydro Turbine model ZDJ502. Customization options include material specifications, runner blade angles, and packaging details adhering to export standards. Minimum order quantity is 1 unit with pricing from $50,000 to $100,000 based on specifications.
Key Customization Details:
• Delivery Time: 6 months
• Payment Terms: L/C
• Supply Capacity: 100 units per year
• Runner Material: Stainless Steel (06Cr13Ni4Mo)
• Blade Angle Range: 15° - 30°
• Delivery Time: 6 months
• Payment Terms: L/C
• Supply Capacity: 100 units per year
• Runner Material: Stainless Steel (06Cr13Ni4Mo)
• Blade Angle Range: 15° - 30°
Technical Support & Services
Our technical support team provides comprehensive assistance including installation guidance, operation support, maintenance schedules, performance analysis, and remote monitoring. We offer on-site inspections, training sessions, and upgrade solutions to enhance turbine capacity and efficiency.
