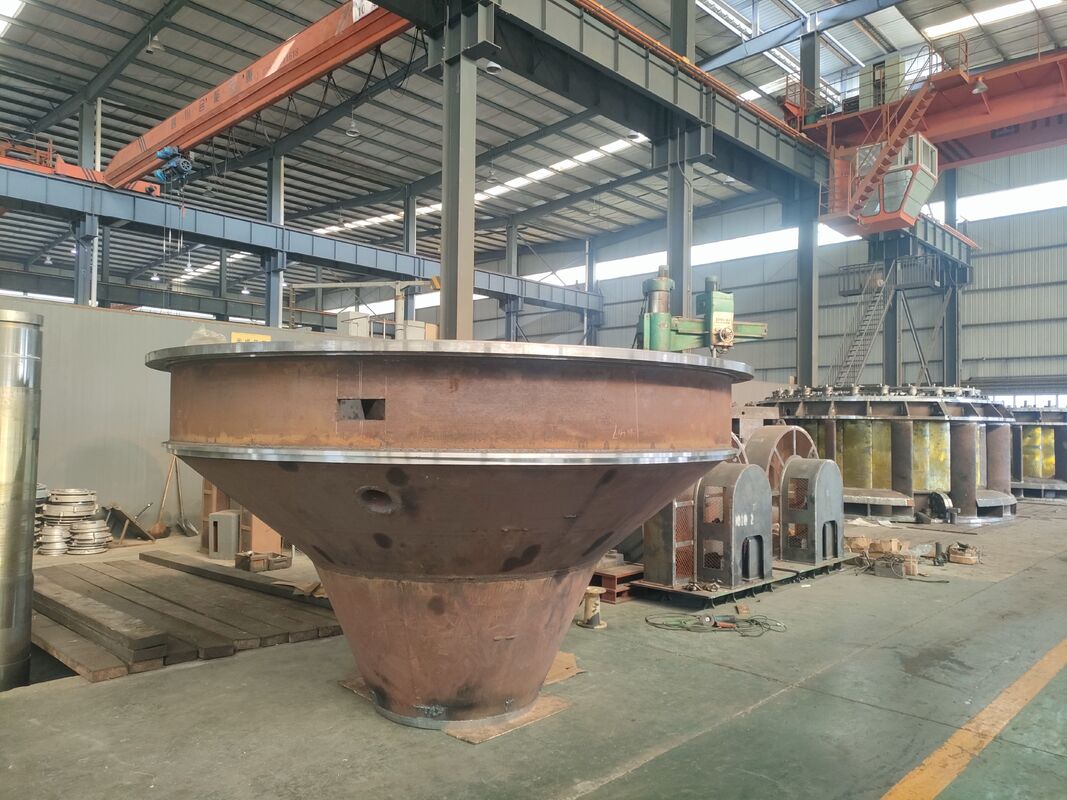

Stainless Steel Blade Kaplan Hydro Turbine with 6300V Generator Voltage and 2-50MW Rated Power for Efficient Hydraulic Turbine System
Product Details:
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | ZDJ50223 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
Detail Information |
|||
| Rated Head: | 2-200m | Rated Power: | 2-50MW |
|---|---|---|---|
| Runner Material: | Stainless Steel (06Cr13Ni4Mo) | Guidevanes: | Adjustable To Control Water Flow |
| Generator Voltage: | 6300V | Guide Vanes Material: | ZG20SiMn |
| Water Inlet: | Vertical | Guide Vane Material: | Stainless Steel/Cast Iron |
| Highlight: | Stainless Steel Blade Kaplan Hydro Turbine,6300V Generator Voltage Hydraulic Turbine System,2-50MW Rated Power Hydro Power Turbine |
||
Product Description
Stainless Steel Blade Kaplan Hydro Turbine
A highly efficient 100KW to 30000KW hydraulic energy turbine system with 6300V generator voltage, designed for durable renewable energy generation across various water flow conditions.
Product Overview
The Kaplan Hydro Turbine is a highly efficient and reliable hydraulic energy turbine designed for modern hydroelectric power generation. With a rated power range from 2 to 50 MW, this turbine is ideal for small to medium-sized hydroelectric projects, delivering exceptional performance and durability for low to medium water head sites.
Key Advantages
This turbine efficiently operates under water heads as low as 8 meters, making it valuable for locations with relatively low hydraulic potential. The adjustable blade mechanism optimizes water flow, ensuring maximum energy extraction and minimal energy losses across varying flow conditions.
Advanced engineering materials and cooling technologies ensure long-term operational stability. Guide vanes are crafted from high-quality stainless steel or cast iron for excellent corrosion and wear resistance in harsh aquatic environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Head | 2-200m |
| Generator Voltage | 6300V |
| Runner Material | Stainless Steel (06Cr13Ni4Mo) |
| Guide Vanes | Adjustable to Control Water Flow |
| Housing Material | Carbon Steel |
| Runner Blade Angle | 15° - 30° |
| Guide Vanes Material | ZG20SiMn / Stainless Steel / Cast Iron |
| Bearing Cooling Type | Oil-water Cooling |
Product Features
- Product Name: Kaplan Hydro Turbine
- Type: Hydro Power Turbine, Hydraulic Power Turbine
- Rated Head: 2-200m
- Rated Power: 2-50MW
- Guide Vanes Material: ZG20SiMn
- Runner Material: Stainless Steel (06Cr13Ni4Mo)
- Durability: Lifetime over 30 years
- High efficiency and reliability for various water flow conditions
- Optimized energy conversion in hydraulic power applications
Applications
The Wawushan Kaplan Hydro Turbine (model ZDJ502) is designed for efficient conversion of hydraulic energy into electrical power. Certified with ISO9001, this hydraulic turbine system is ideal for:
- Low to medium head hydroelectric sites with variable water flow
- Rivers, dams, and irrigation canals requiring sustainable energy solutions
- Seasonal flow variations in hydroelectric facilities
- New hydroelectric projects and upgrades to existing facilities
Customization Options
Model: ZDJ502
Minimum Order: 1 unit
Price Range: $50,000 - $100,000
Delivery Time: Approximately 6 months
Annual Supply Capacity: 100 units
Payment Terms: L/C options available
Technical Support & Services
Our comprehensive support ensures optimal turbine performance and longevity:
- Installation guidance and operational troubleshooting
- Preventative maintenance programs and condition monitoring
- Upgrade services with latest technological advancements
- Customized training programs for operational personnel
- Performance assessments and plant optimization consultation
The Kaplan Hydro Turbine combines cutting-edge technology with proven performance, providing a complete and dependable solution for hydroelectric power projects supporting sustainable development and energy independence.
