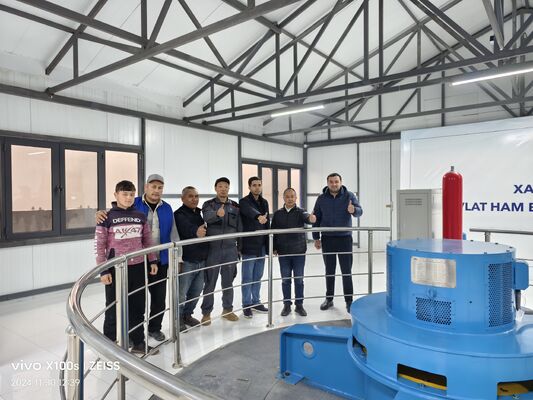

Stainless Steel Blade Kaplan Hydro Turbine with Vertical Layout and 16.00 M³/s Flow for Efficient Hydraulic Power Generation
Product Details:
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | ZDJ50231 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
Detail Information |
|||
| Generator Type: | Synchronous Generator | Material: | Stainless Steel Blade |
|---|---|---|---|
| Rated Speed: | 500r/min | Blade Material: | Stainless Steel With CNC |
| Layout Pattern: | Vertical | Rated Head: | 2-200m |
| Flow: | 16.00 M³/s | Speedrange: | Typically 100 To 300 RPM |
| Highlight: | Stainless Steel Blade Kaplan Hydro Turbine,Vertical Layout Kaplan Hydro Turbine,16.00 M³/s Flow Hydraulic Power Turbine |
||
Product Description
6-20KV Generator Voltage Kaplan Hydro Turbine
The Kaplan Hydro Turbine is a state-of-the-art hydraulic power turbine engineered for exceptional performance and efficiency in hydroelectric power generation. Designed with precision and advanced technology, this turbine provides an ideal solution for harnessing flowing water energy to generate clean, sustainable electricity.
Key Features
- Product Name: Kaplan Hydro Turbine
- Highly efficient Hydraulic Energy Turbine design
- Durable construction with over 30-year lifespan
- Operational speed range: 100 to 300 RPM
- Rated speed: 500 r/min for optimal performance
- Robust carbon steel spiral case for enhanced durability
- Vertical water inlet design maximizing flow efficiency
- Ideal for Hydraulic Turbine Generator applications
Technical Specifications
| Generator Type | Synchronous Generator |
| Rated Speed | 500 r/min |
| Flow Capacity | 16.00 M³/s |
| Rated Power | 2-50 MW |
| Water Inlet | Vertical |
| Blade Material | Stainless Steel with CNC |
| Speed Range | Typically 100 to 300 RPM |
| Runner Blade Angle | 15° - 30° |
| Rated Head | 2-200 m |
| Runner Type | Fixed Blades/Regulator Blades |
Applications
The Wawushan Kaplan Hydro Turbine (model ZDJ502) is engineered for efficient energy conversion in various hydroelectric power generation applications. ISO9001 certified and originating from China, this turbine is known for reliability, durability, and advanced engineering.
Ideal for small to medium-sized hydroelectric power stations, river basins with low to medium head heights, off-grid renewable energy systems, and hydropower retrofitting projects. The turbine efficiently converts kinetic water energy into mechanical and electrical energy with minimal losses.
Customization Options
Wawushan offers customized services for the Kaplan Hydro Turbine model ZDJ502 with a minimum order quantity of 1 unit. Customization includes runner type selection (fixed blades or regulator blades) and specific project requirements.
Pricing & Delivery
Price Range: $50,000 - $100,000
Delivery Time: Approximately 6 months
Payment Terms: L/C
Annual Supply Capacity: 100 units
Technical Support & Services
Our dedicated technical support team ensures optimal performance and longevity of your Kaplan Hydro Turbine throughout its lifecycle. Services include:
- Comprehensive technical consultation and troubleshooting
- Performance analysis and customized maintenance planning
- On-site support and remote diagnostics
- Technical staff training programs
- Spare parts availability and retrofit solutions
