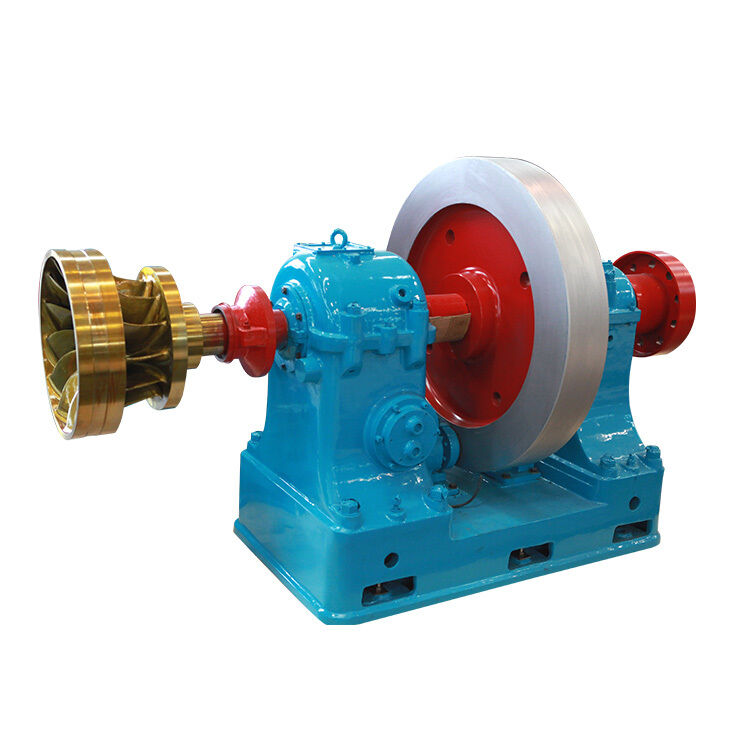

High Efficiency 90%-95% Francis Hydro Turbine with 50kw-20MW Power Design for 20-300m Water Head Hydropower Projects
Product Details:
| Place of Origin: | China |
| Brand Name: | Wawushan |
| Certification: | ISO9001 |
| Model Number: | HLA-202510 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 50000 |
| Packaging Details: | standard |
| Delivery Time: | 6 months |
| Payment Terms: | T/T |
| Supply Ability: | 100 units per year |
|
Detail Information |
|||
| Model NO.: | ZDJJP-009 | Output Type: | AC Three Phase |
|---|---|---|---|
| Bearing Support: | Umbrella Type | Bearing Number: | 1 |
| Efficiency: | 90%-95% | Voltage: | 400V-6300V |
| Frequency: | 20Hz, 60Hz | Turbine Type: | Francis, Turgo, Kaplan, Pelton |
| Power Design: | 50kw-20MW | Water Head: | 20-300m |
| Lifespan: | 30 Years | Production Capacity: | 200 Sets Per Year |
| Runner Blade Angle: | 30° | Guide Vane Angle: | 45° |
| Seat Ring Struts Angle: | 35° | ||
| Highlight: | Francis Hydro Turbine 50kw generator,horizontal Francis Hydro Turbine 400V,Francis Hydro Turbine 20MW 6300V |
||
Product Description
200kW Generator Turbine - Pelton, Crossflow, Propeller & Reaction Types for High Head Applications
Turgo Turbine Overview
The Turgo inclined-jet turbine is engineered for power stations operating with high head and low flow conditions. Water flows from the reservoir through diversion pipes and nozzles, striking runner blades at high velocity to generate rotational energy. After passing through the runner, water discharges into the tailwater tank and downstream channel.
Designed for small hydropower stations with heads ranging from 20-200 meters, this turbine drives hydrogenerators to produce electrical energy. Available in vertical and horizontal shaft configurations with bearing shell structures, it supports automatic, manual, and electric speed regulation systems.
Advanced Engineering Design
The turbine features an inclined runner blade axis, creating water flow that angles toward the unit axis. The welded inclined volute connects to a cast-welded seat ring with twelve struts inclined at 35° to horizontal.
The 45° inclined guide water mechanism includes 24 guide blades, transmission components, turbine top cover, and bottom ring. Guide vanes feature double-supported symmetrical airfoils with wooden bearings lubricated by flowing water, while rubber bowls prevent water leakage in upper journals.
The runner chamber is precision-welded from die-forged stainless steel with finished inner surfaces. Ten stainless steel blades cast at 45° angles are driven by a scraper relay system, enabling 30° blade rotation for optimal performance.
Key Advantages
- High Efficiency: Converts water flow kinetic energy into mechanical energy for electricity generation, delivering long-term economic returns
- Low Cost: Simplified equipment design reduces construction, manufacturing, and maintenance expenses compared to traditional hydropower systems
- Superior Adaptability: Flexible installation locations and scalable equipment configurations meet diverse regional and electrical demand requirements
Manufacturing Capabilities
| Production Capabilities | Details |
|---|---|
| Production Lines | 6 |
| Production Machines | 40 |
| Quality Control | Raw material traceability, inspection across all production lines |
| QA/QC Inspectors | 4 |
| Main Markets | Domestic (88%), Southeast Asia (9%), South Asia (2%) |
| Primary Clients | Retailers, Engineers, Manufacturers |
Research & Development
Customization Options: Sample processing, graphic processing, and on-demand customization services
R&D Team: 6 engineers (5 graduate level, 1 junior college)
Innovation: 15 new products launched in the last year
